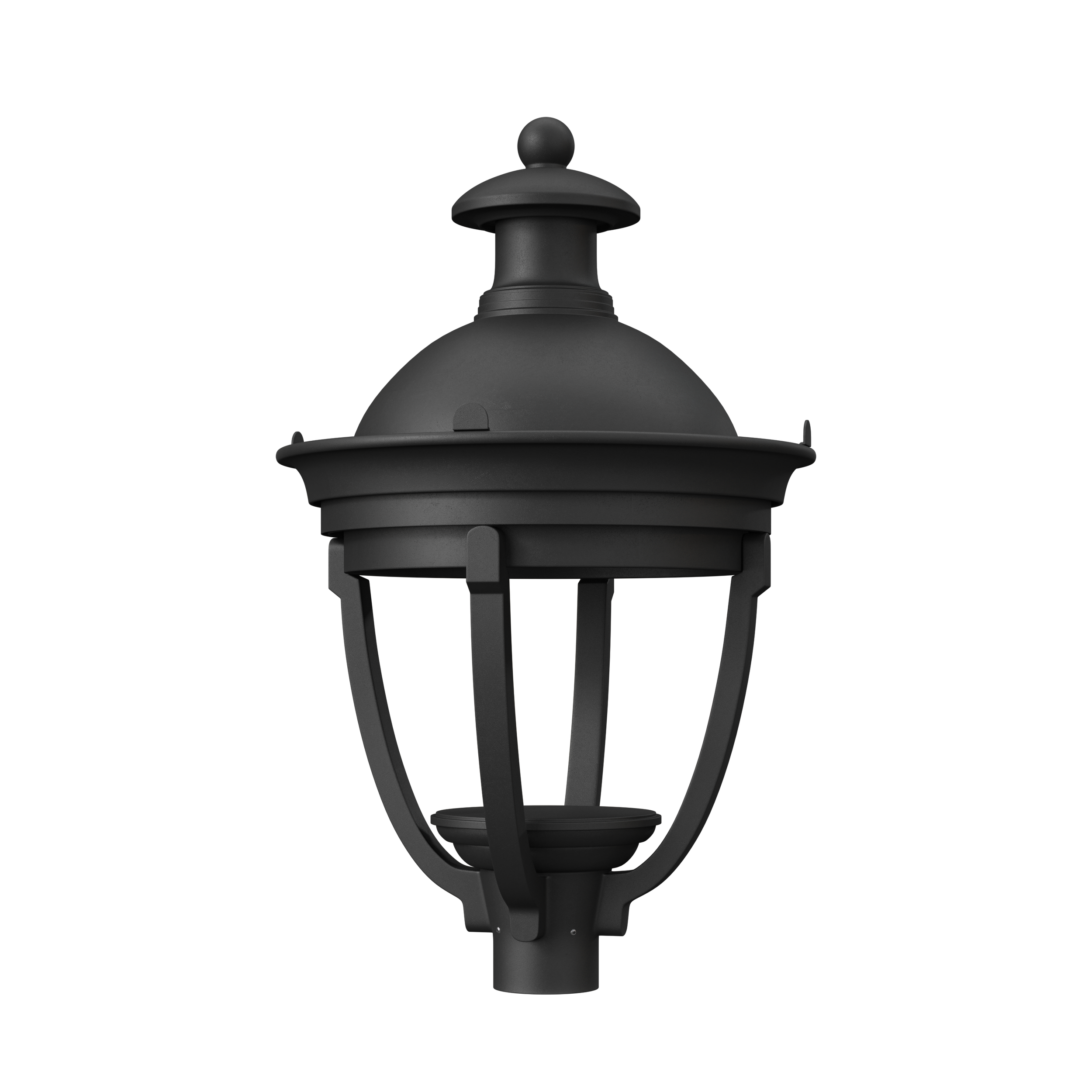

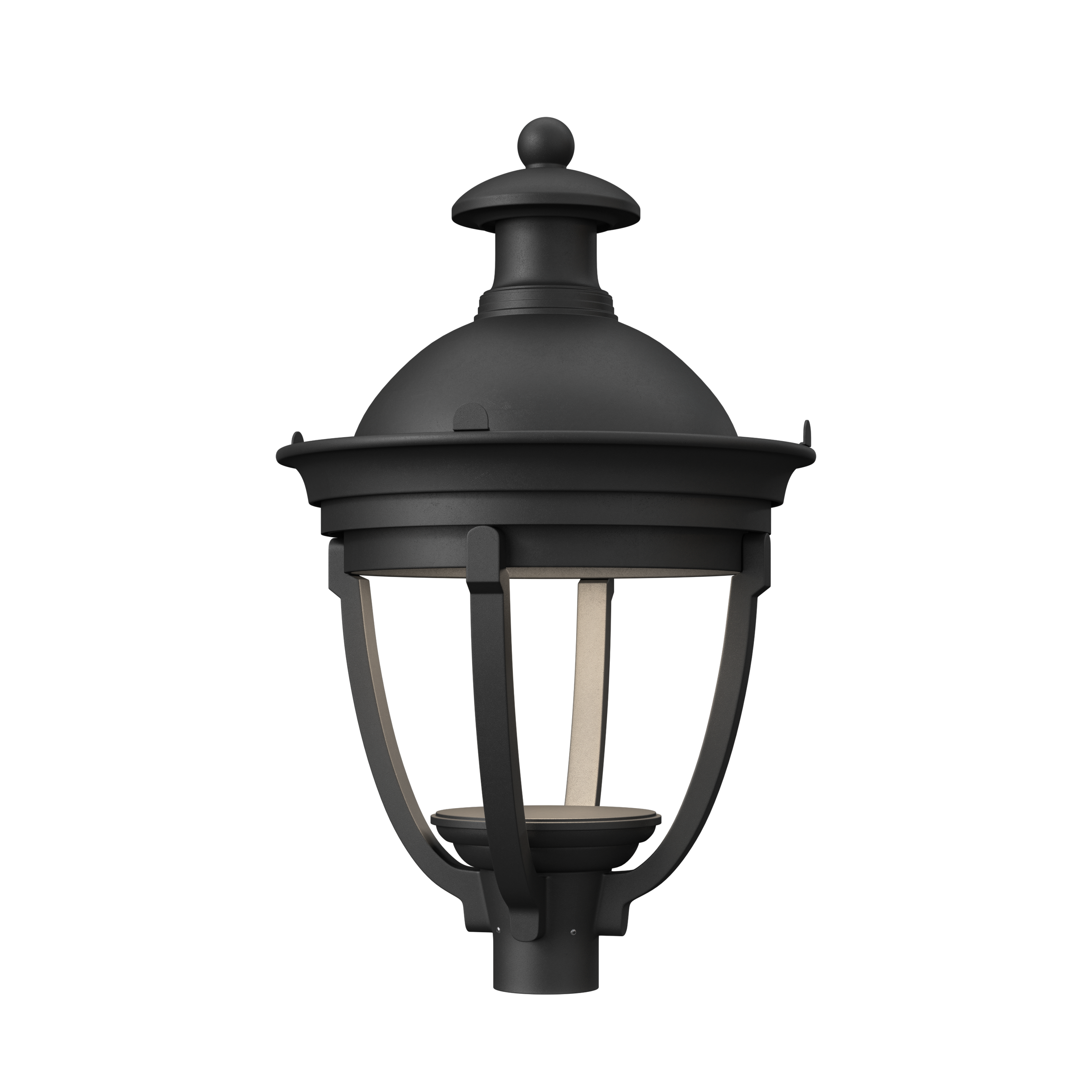

Chelsea
The Chelsea architectural fixture is fabricated from heavy duty cast aluminum and extruded aluminum base with an outdoor polyester powder coat finish.
Key Features
Heavy-duty cast aluminum construction
5-year warranty
Product Details
Electrical Components
Watts : 20w through 120w, Custom watts available, consult factory.
Voltage: 120v through 277v and High voltage 347V - 480V.
LED
High performance LED CRI: 80. Color temperature ranges from CCT: 2700K - 5000K. Also available in Amber +560nm (AMBR).
Color Temperature
2700k, 3000k, 3500k, 4000k, 4500k, 5000k
Optic
Type II (T2), Type III (T3), Type IV (T4), and Type V (T5)
Mounting
Designed to fit over a 3” O.D. x 4” L Tenon (SF300)
Finish – Color
Zuma Bronze
GT Black
Iridium Silver
Alpine White
Granite Gray
Moss Green
Custom (Specify RAL)
Controls
Dimming. 0-10v dimming (D) available.
Photocell: Mounts to top of fixture (SAM) or side (TAM)
Motion Sensor (M)
Options
Chelsea can be made to “Buy American Compliant” (BAA) and
“Build America, Buy America Act Compliant” (BABA) (includes
BAA)
SKY = Sky Night Friendly: Downward light only.
HSS = 180° House Side Shield.
HSSOP = 180° Houseside Shield (Optics)
Super Durable Marine Grade Finish (MGF) available in standard
and custom colors, consult factory.
SP = Surge Protection: To be field installed in the bottom of the
pole.
Warranty
5 years
