Campbell

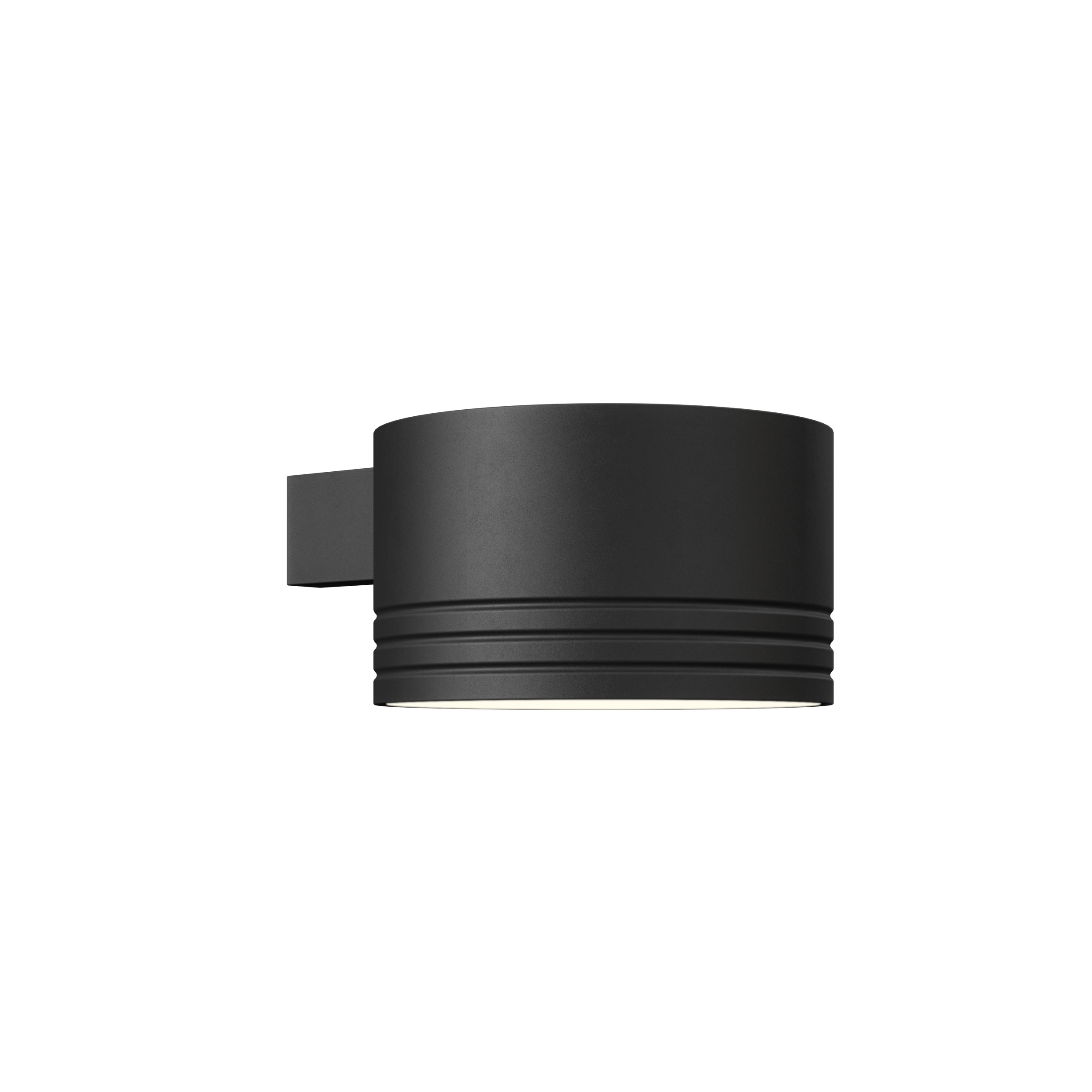

The Campbell architectural fixture features a cast and extruded aluminum housing with a durable spun aluminum shade, finished in a weather-resistant polyester powder coat.
Key Features
Heavy-duty cast aluminum construction
5-year warranty
Product Details
Electrical Components
Watts : 20w through 160w, Custom watts available, consult factory.
Voltage
120v through 277v and High voltage 347V - 480V.
LED
High performance LED CRI: 80. Color temperature ranges from CCT: 2700K - 5000K.
Optic
Type II (T2), Type III (T3), Type IV (T4), and Type V (T5)
Lens
No Diffusion Lens (NL), Frosted Lens (FL), Opal White Lens (OL), or Clear Lens (CL)
Mounting
Designed to fit over a 2-3/8” O.D. Tenon (SF238) or 3” O.D. Tenon (SF300).
Finish – Color
Zuma Bronze
GT Black
Iridium Silver
Alpine White
Granite Gray
Moss Green
Custom (Specify RAL)
Controls
Dimming. 0-10v dimming (D) available.
Photocell: Mounts to top of fixture (SAM) or side (TAM)
Motion Sensor (M)
Options
Campbell can be made to “Buy American Compliant” (BAA)1 and
“Build America, Buy America Act Compliant” (BABA)1 (includes
BAA)
• Sky Night Friendly (SKY)
• 180° Houseside Shield (HSS)
• 180° Houseside Shield Optics (HSSOP)
• Surge Protection (S)
• Marine grade finish (MGF) available in standard and custom
colors, consult factory.
Warranty
5 years
