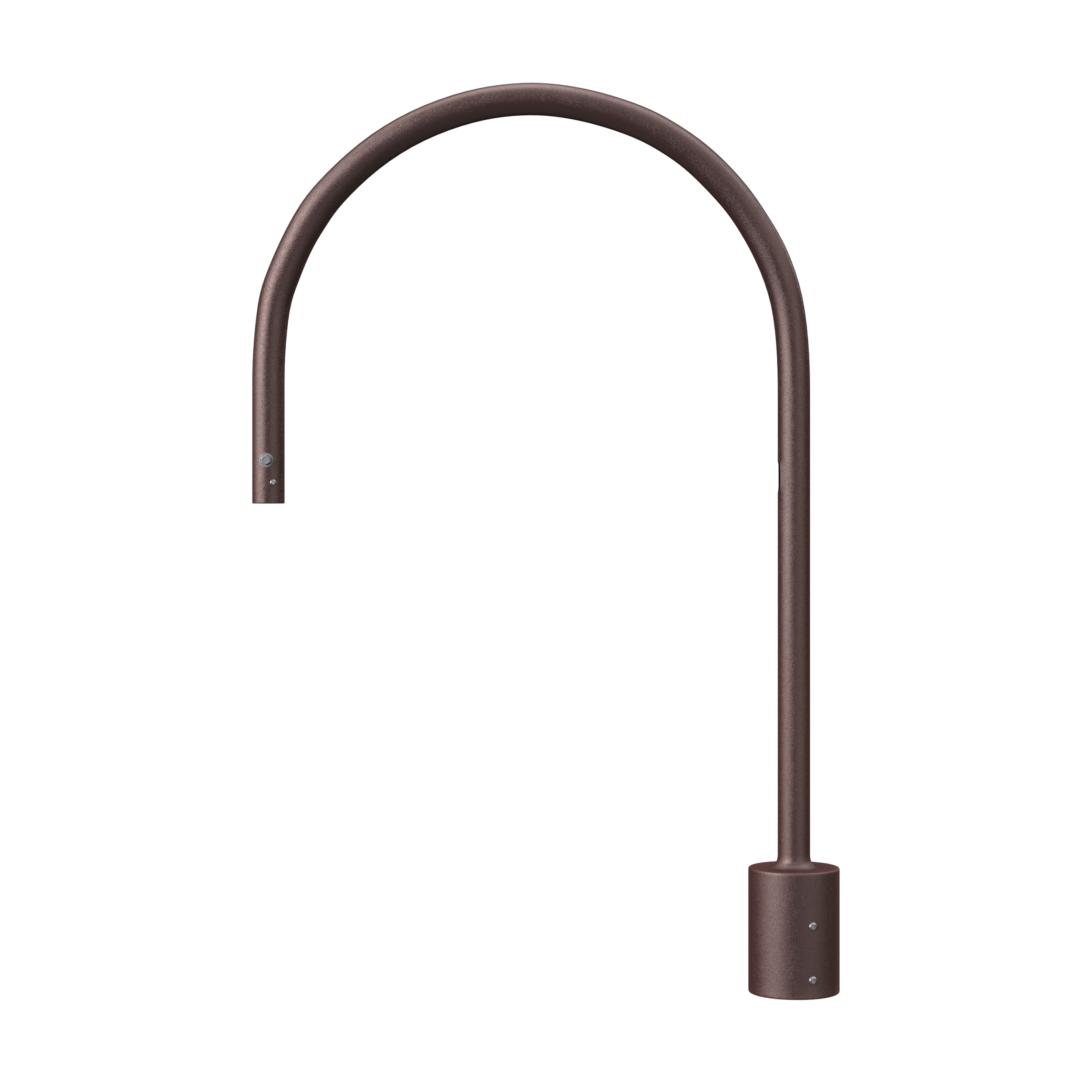

AT07 ARM
The AT07 Arm is fabricated from heavy duty extruded aluminum alloy with an outdoor polyester powder coat finish. Includes stainless steel hardware. Marine grade finish available. Also available in steel, specify.
Product Details
Arm Configuration
Come in Single, Double, Triple and Quad Arm options, see pg 3.
Arm Sizes
Two (2) standand sizes for fixture sizes frp, 18” through 30”. Custom arm sizes also available
Small (36” H x 18” W): For fixtures 18” Dia. thru 20” Dia. (TA2 Arm Mounting)
Large: (42” x 26” W): For fixtures 24” Dia. thru 30” Dia. (TA3 Arm Mounting).
Custom sizes available.
Mounting
AT07 installs on poles (open or tenon), post tops, and for Wall Mount (WM).
Standard Tenon Mounting Options
2-3/8” O.D. x 6” Long (SF23806)
3” O.D. x 6” Long (SF306)
3-1/2” O.D. x 6” Long (SF3506)
4” O.D. x 6” Long (SF406)
Custom Slip fitters available, specify (e.g.: CSFxxx, e.g.: CSF4506 = 4-1/2” O.D. x 6” L, etc.)
Options
Buy American Act Compliant (BAA)
Build America, Buy America Act Compliant (BABA. Includes BAA)
Marine Grade Finish (MGF)
Horizontal Cross Bar (HCB)
Decorative Scroll (DSC)
